Ensure perfectly prepared surfaces in the field.

TransPol-5 facts

  • High performance and portable grinding and polishing tool
  • Easy remote-controlled operation
  • Total solution for prepared surfaces
  • High performance motor ensures sufficient power working even with the coarsest paper.
  • Battery or mains powered with an exchangeable battery pack
  • Remote-controlled operation by use of a 3.0 m flexible cable
  • All necessary accessories are included, and are easily stored in the hold of the carrying case.

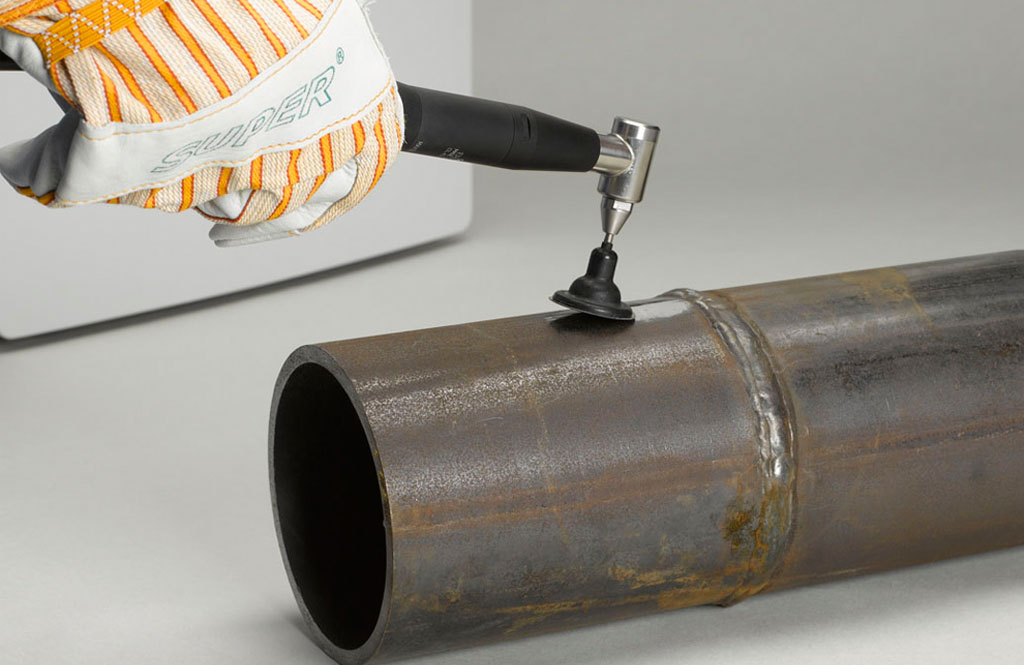

Trans P ol-5 is a portable, non-destructive metallographic grinding/polishing machine built to withstand rugged field conditions. Very compact 32 mm grinding and polishing disks mean that welds, in even the most inaccessible places, can be handled.

Request a quote

Designed for field work

TransPol has been designed for field work. The equipment is compact and light for easy transport and can be used literally under any conditions.

Effectively reveals changes in the microstructure

The Struers TransPol method effectively reveals changes in the microstructure of the metal and so prevents possible damage because of cracks and leaks.


  • TransPol high performance

    High Performance Motor

    The powerful motor ensures sufficient power, working even with the coarsest grinding paper. The motor has variable speed (0-20,000 rpm) for optimum results.

    High Performance Motor
  • TransPol battery or mains

    Battery or Mains Powered

    An exchangeable battery pack offers up to 1.5 hours of continuous battery operation. With the battery pack installed, TransPol-5 can also be connected to the power mains and used directly. The battery pack is shared with the MoviPol-5 electropolisher. The battery pack and charger are included.

    Battery or Mains Powered
  • TransPol all accessories

    All Accessories Included

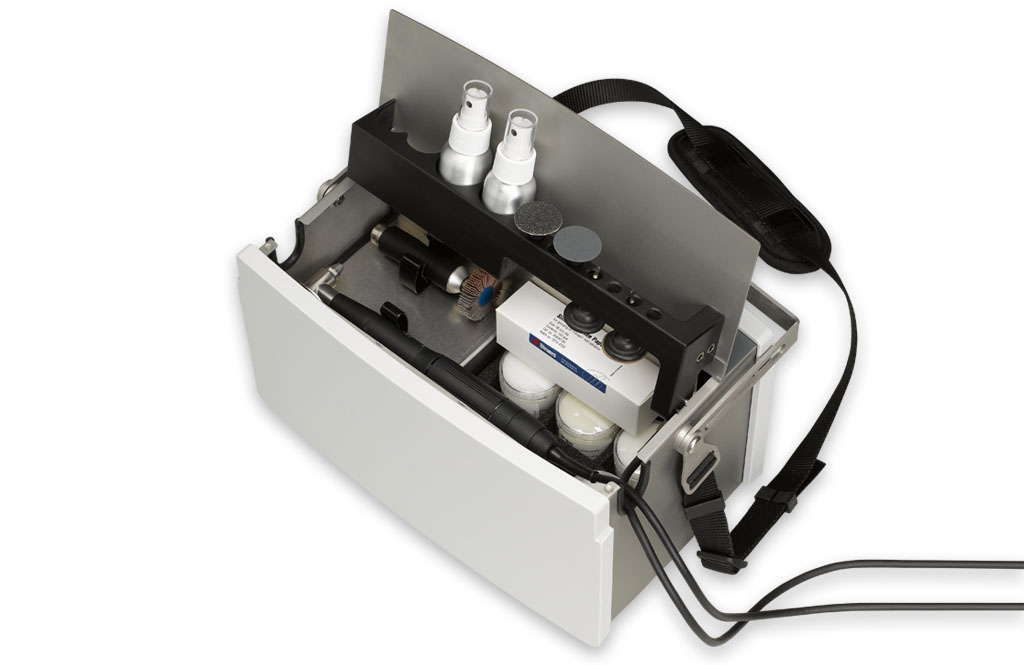

    All necessary accessories are included, and are easily stored in the hold of the carrying case. Here, there is also plenty of storage space for all consumables needed for the preparation. The portable grinder/polisher comes with both an angled and a straight handle, and exchangeable rubber disks, for support of the grinding paper and polishing cloth disks.

    All Accessories Included
  • TransPol remote controlled

    Remote-controlled Operation

    TransPol-5 comes with a 3.0 m cable. When the operator needs to climb onto a ladder, for example, the carrying case can stay on the ground, while the grinding/polishing unit is remote-controlled from the elevated position.

    Remote-controlled Operation


Model types


TransPol-5 portable, non-destructive metallographic grinding/polishing machine
Portable, metallographic grinding/polishing machine with a 3.0 m connection cable. Battery or mains operation, 30V or 100-240V / 50-60Hz. Complete with shoulder strap, rechargeable battery pack, battery charger, reduction gear unit, straight handle, right angle handle, and four rubber disks. TransPol-5, 30V or 100-240V / 50-60Hz

Struers’ equipment is in conformity with the provisions of the applicable international directives and their appurtenant standards.
Struers’ products are subject to constant product development. Therefore, we reserve the right to introduce changes to our products without notice.

Technical Data

TransPol-5 Technical Data Sheet

Struers Technical Data Sheets are designed to help you make the best choice of equipment for your particular purpose. You can find important information such as capacity and performance specifications, dimensions, weight, electrical data, noise levels, ambient conditions, and safety. In many cases you can also obtain an overview of accessories offering higher capacity and performance.

Download Technical Data Sheet
Technical Data Sheet
